WIFI GNSS High Precision Controller S17M for G9 & G10 Receiver

Product Categories

GEO-ALLEN CO.,LTD.

Contact Now

Ask Lasest Price
Brand Name :	No brand or OEM
Model Number :	S17M
Certification :	No Certificate
Price :	USD
Payment Terms :	L/C, T/T
Supply Ability :	1000 Pieces per year
Delivery Time :	15working days afrer confirmation

Add to Cart

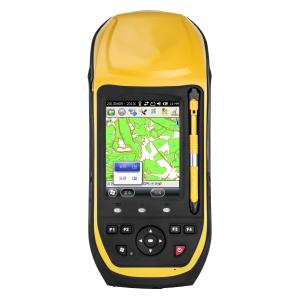

Controller S17M for G9 & G10 GNSS Receiver

Specifications:

CPU	512M
ROM	4GB
Operate system	Windows Mobile 6.X
Keyboard	27 key number+control key
Screen resolution	480 x 640
Camera	5M pixel
Size	200mm x 96mm x 32mm
Weight	515g (including battery)
GNSS performance
GNSS	GPSL1+BDB1/GPS L 1+GLONASS G1
Channel	72
Raw Data	-
NMEA-0183	Support
Rove/Base	-
Positiong accuracy
Single	2.5m
SBAS	2m
RTK	-
Communication and data storage
WIFI	Support
USB interface	Type B USB
Interface	DB9 standard series port
Storage extension	TF card, upto 32GB
Long distance bluetooth	Optional
Standard bluetooth	V2.1
NFC	-
Voice communication	nonsupport
GSM/3G (WCDMA)	3G (WCDMA)
Power
Power input	DC5V, 1A
Removable Li-baterry	6,500mAh, 3. 7V
Environment
Work environment	‐20℃ ~ +60℃
Storage temprature	‐30℃ ~ +70℃
Dustproof waterproof grade	IP65
Anti-dropping	1.2m free dropping
Accessory
Standard accessories	Power adaptor, USB cable, battery, series port
Standard accessories	cable,stylus,
	cable,stylus,
	hand strap, screen film,Operational guidelines
Optional accessories	Bracket, external antenna, external antenna patch cord
Software support
Software	SurvCE, FieldGenius
